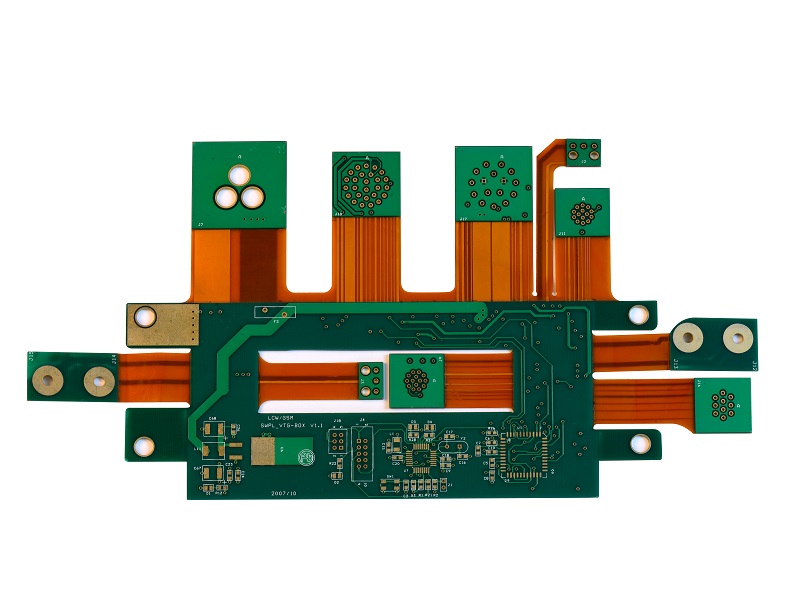

层数/Layers:Rigid-fiexbile,4layers
板厚Thickness: 1.6mm
最小孔径Min.Hole Size: 0.1mm
线宽线距/Width/Space:4.0/4.0mil
表面处理/Surface Treatment:ENIG
特殊工艺/Special Process:Rigid-fiexbile
应用领域/Appilcation: Industrial sentor
FPC and the birth and development of PCB, gave birth to a combination of soft and hard board of this new product. Therefore, the soft and hard combination board, is a flexible circuit board and rigid circuit board, through the pressure and other processes, according to the relevant process requirements together to form a FPC characteristics and PCB characteristics of the circuit board.
Because the soft and hard combination board is FPC and PCB combination, the production of soft and hard board should have both FPC production equipment and PCB production equipment. First, the electronic engineer draws the line and shape of the soft bonding board according to the demand, and then sends the software to the factory which can produce the hard and soft bonding board. After the CAM engineer processes and plans the relevant documents, arranges the FPC production line. FPC, PCB production line to produce PCB, these two soft and hard board came out, in accordance with the planning requirements of electronic engineers, the FPC and PCB after a seamless pressure laminating machine, and then through a series of details of the link, the final process A combination of soft and hard board. A very important part of the hard and soft should be combined board is difficult, the details of the problem, before shipment, the general should be the whole inspection, because its value is relatively high, so as to avoid the loss caused by both the supply and demand-related benefits.
